Sulfide (S-2)
|
| |
|
|
|
| Sulfide (S-2) |
Model |

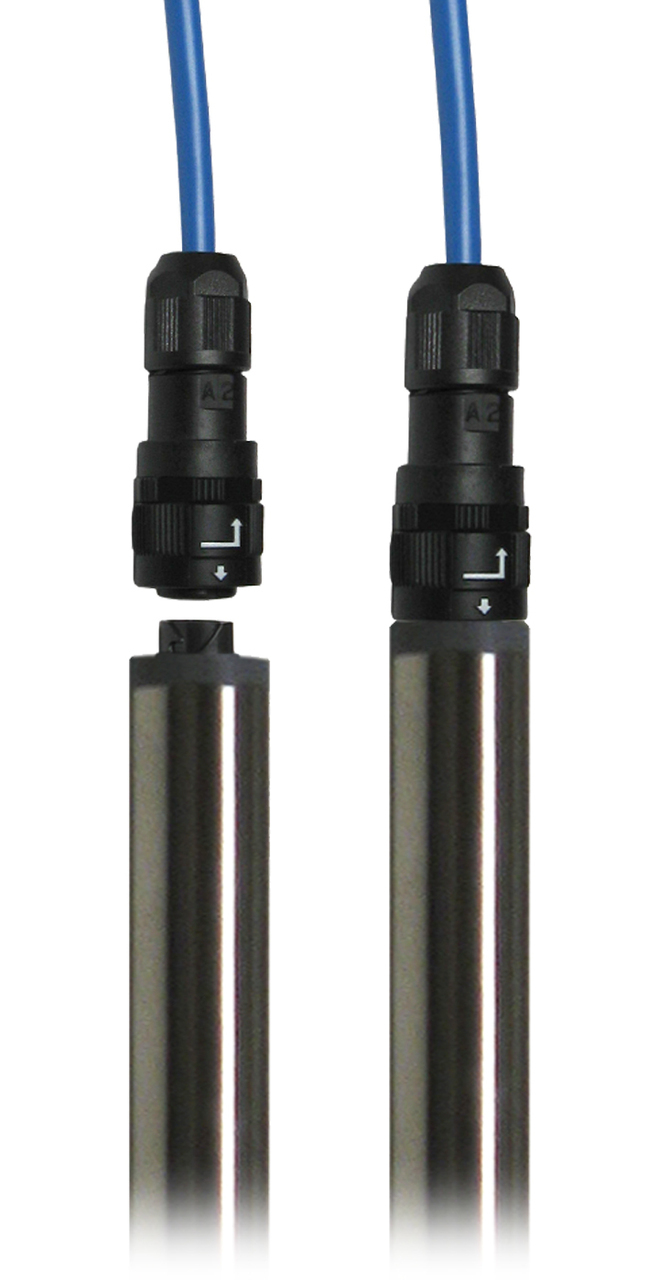

S80 Sulfide Sensor |
Sensor
Type |
Silver Sulfide measurement cell, Double Junction |
Direct Measuring Range |
Molar |
1 X 10-7 ~ 1.0 |
ppm(mg/L)
|
0.02~32,000 |
Slope
mV/decade at 25˚C |
27±2 |
pH
Range |
11 ~ 14 pH with pH compensation |
Temp(˚C)
Range |
0 ~ 80 |
Interfernce |
None |
Wetted Materials |
PEEK, epoxy, AgS Crystal, PTFE, 316SS, Viton O-Ring |

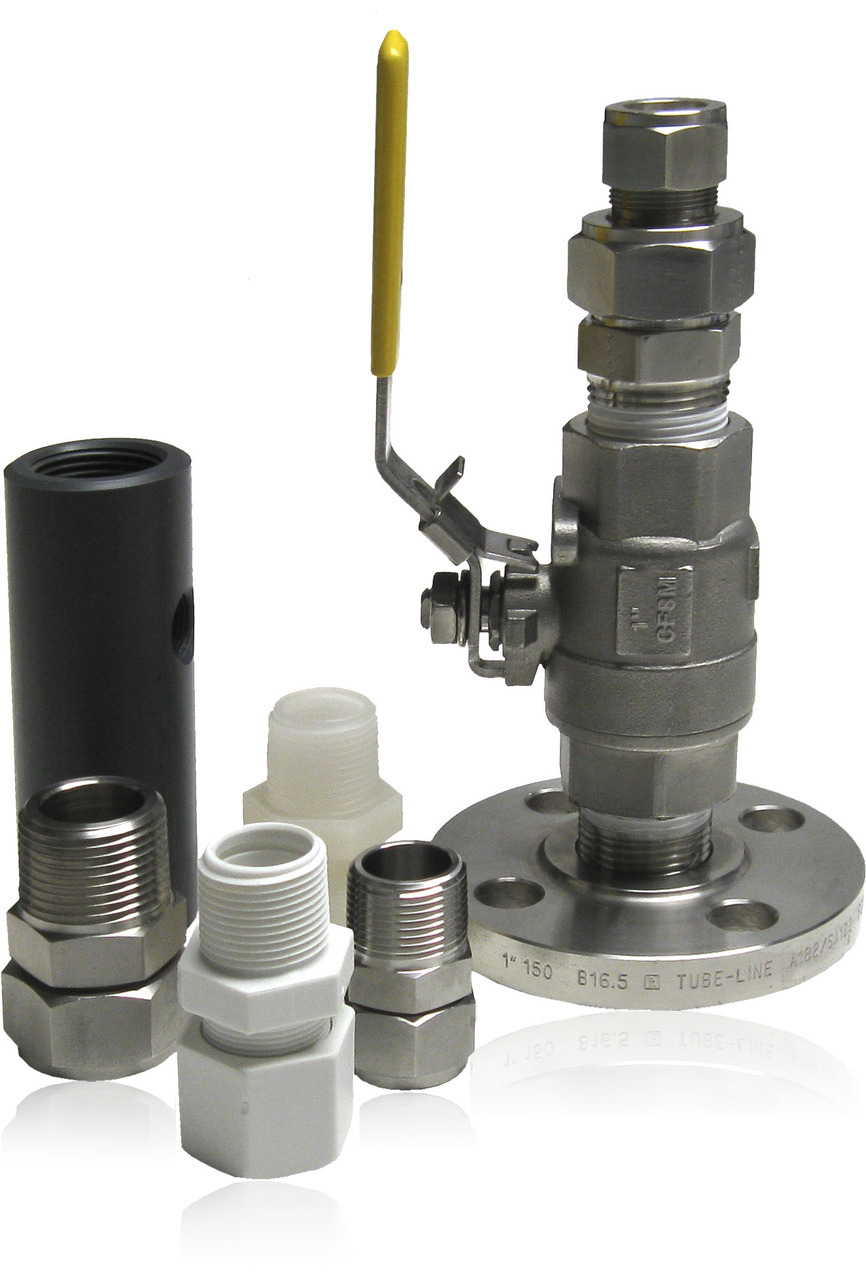

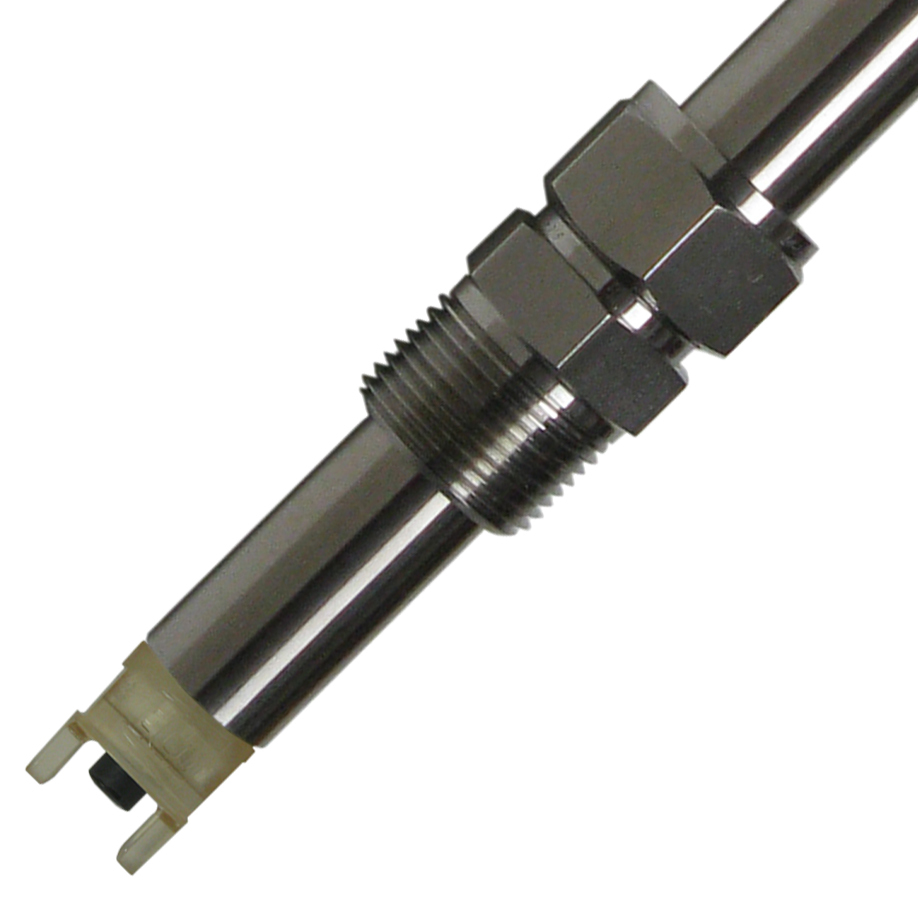

Process Connections |
MVS10 : 3/4" MNPT compression fitting MVS17 : 1"
MNPT Ball Valve |
|
|
