Cyanide (CN-)
|
| |
|
|
|
| Cyanide (CN-) |
Model |

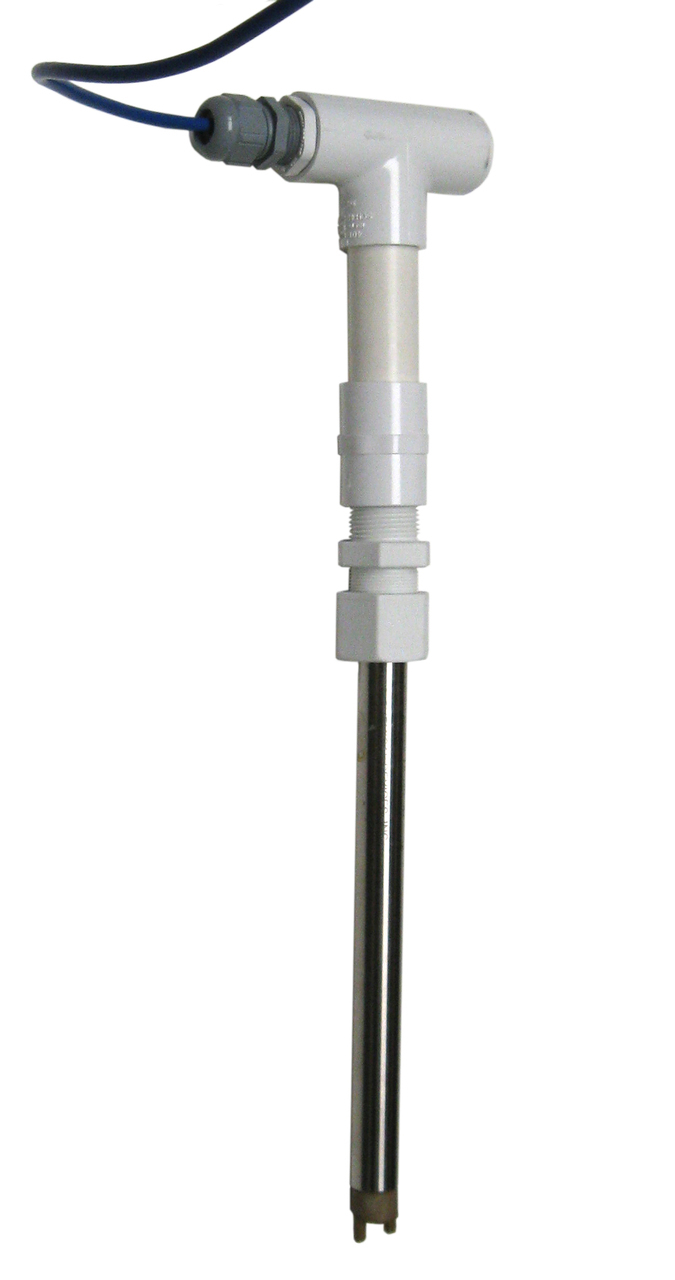

S80 Cyanide Sensor |
Sensor
Type |
Silver cyanide measurement cell, Double Junction |
Direct Measuring Range |
Molar |
1X 10-2 ~ 5 X 10-6 |
ppm(mg/L)
|
0.2~260ppm |
Slope
mV/decade at 25˚C |
54±5 |
pH
Range |
10 ~14 |
Temp(˚C)
Range |
0 ~ 80 |
Interfernce |
Sulfide, iodide, strong reducing agent
|
W etted Materials |
Radel, epoxy, AgS/AgCN, PTFE, 316SS, Viton O-Ring |

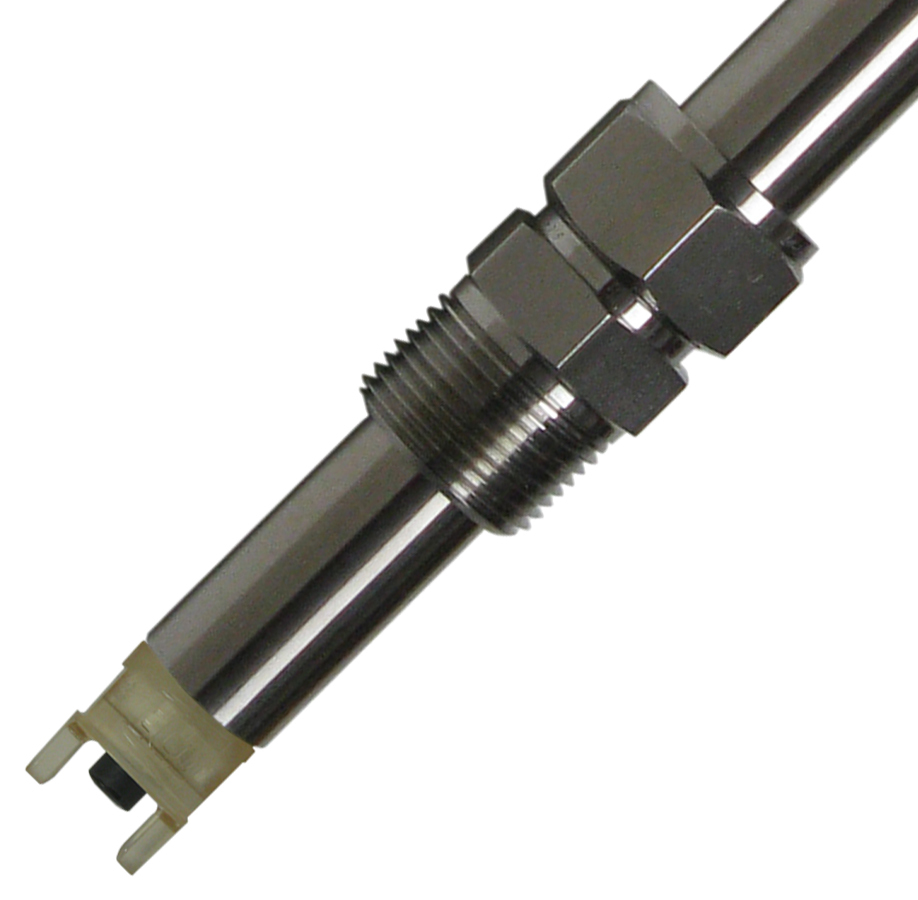

Process Connections |
MVS10 : 3/4" MNPT compression fitting MVS17 : 1"
MNPT Ball Valve |
|
|
