Cupric Ion (Cu+2)
|
| |
|
|
|
| Cupric Ion (Cu+2) |
Model |
S80 Cupric Ion Sensor |
Sensor
Type |
copper sulfide measurement cell, Double Junction |
Direct Measuring Range |
Molar |
1 X 10-8 ~ 0.1 |
ppm(mg/L)
|
1 ppb~6,300 ppm |
Slope
mV/decade at 25˚C |
27±3 |
pH
Range |
2 ~ 6 |
Temp(˚C)
Range |
0 ~ 80 |
Interfernce |
Silver, Mecury must be absent, Chloride, Bromide |
W etted Materials |
Radel, epoxy, CuS, PTFE, 316SS, Viton O-Ring |

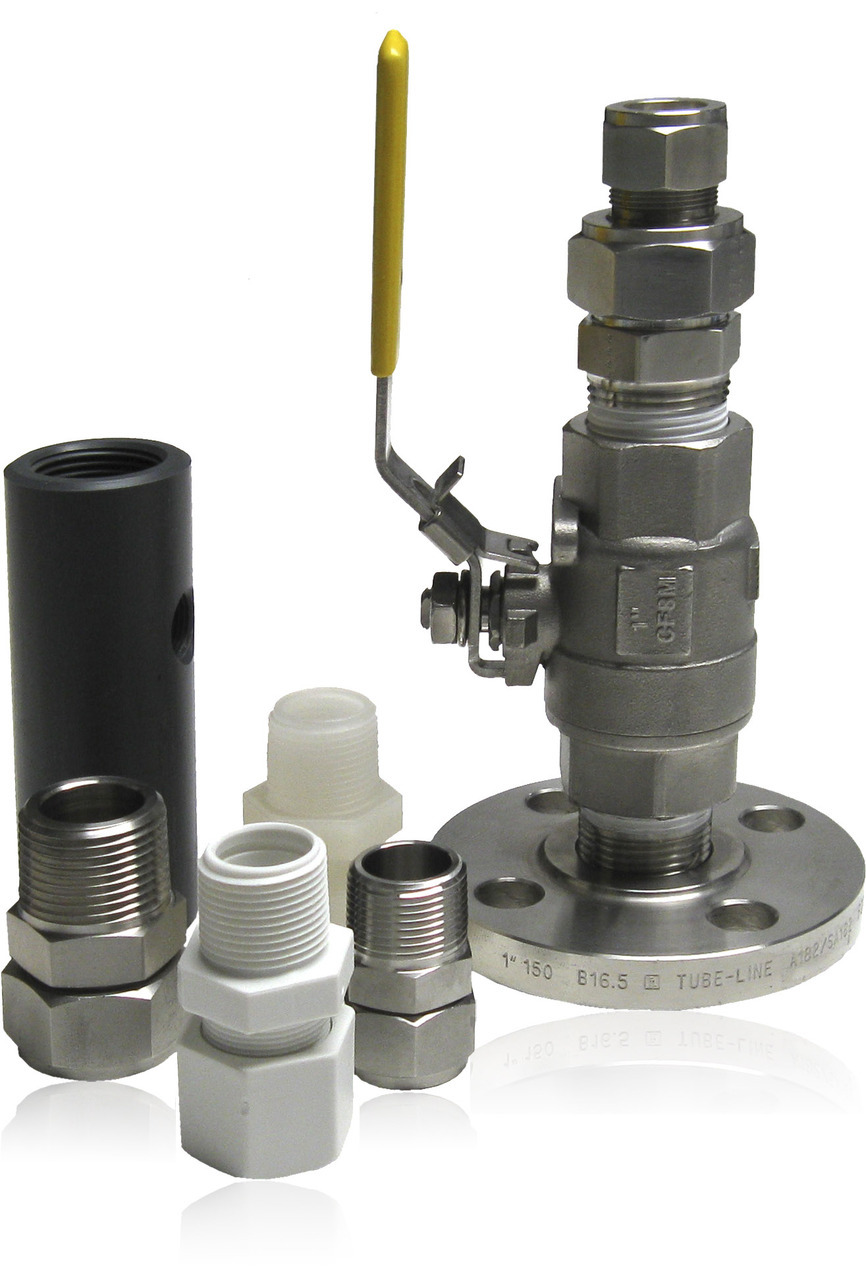

Process Connections |
MVS10 : 3/4" MNPT compression fitting MVS17 : 1"
MNPT Ball Valve |
|
|
