Chloride (Cl-)
|
| |
|
|
|
| Chloride (Cl-) |
Model |

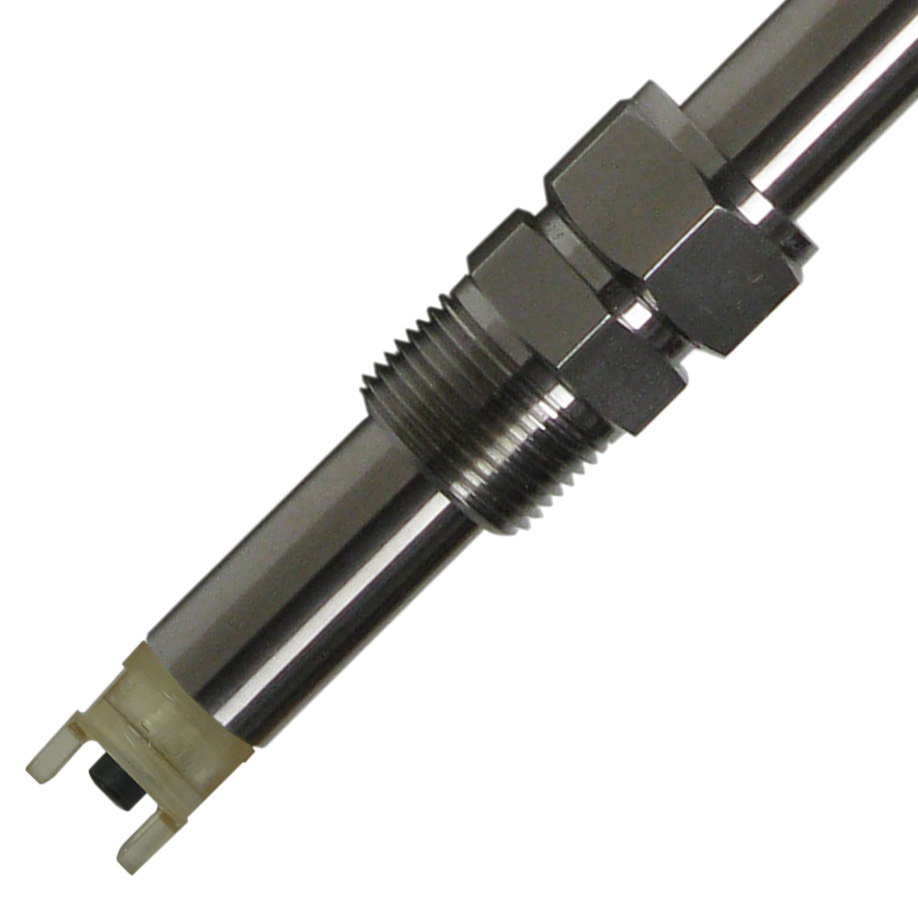

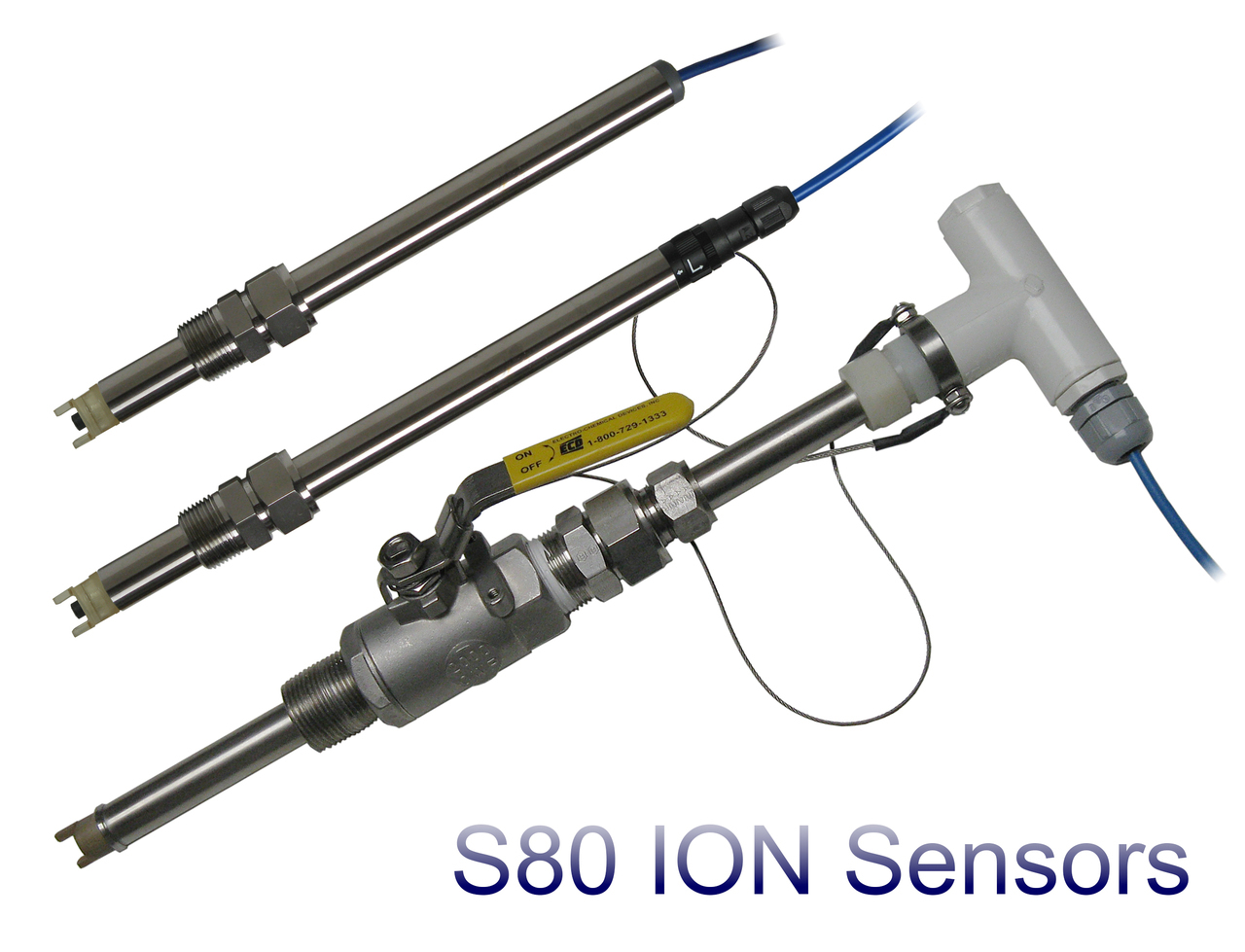

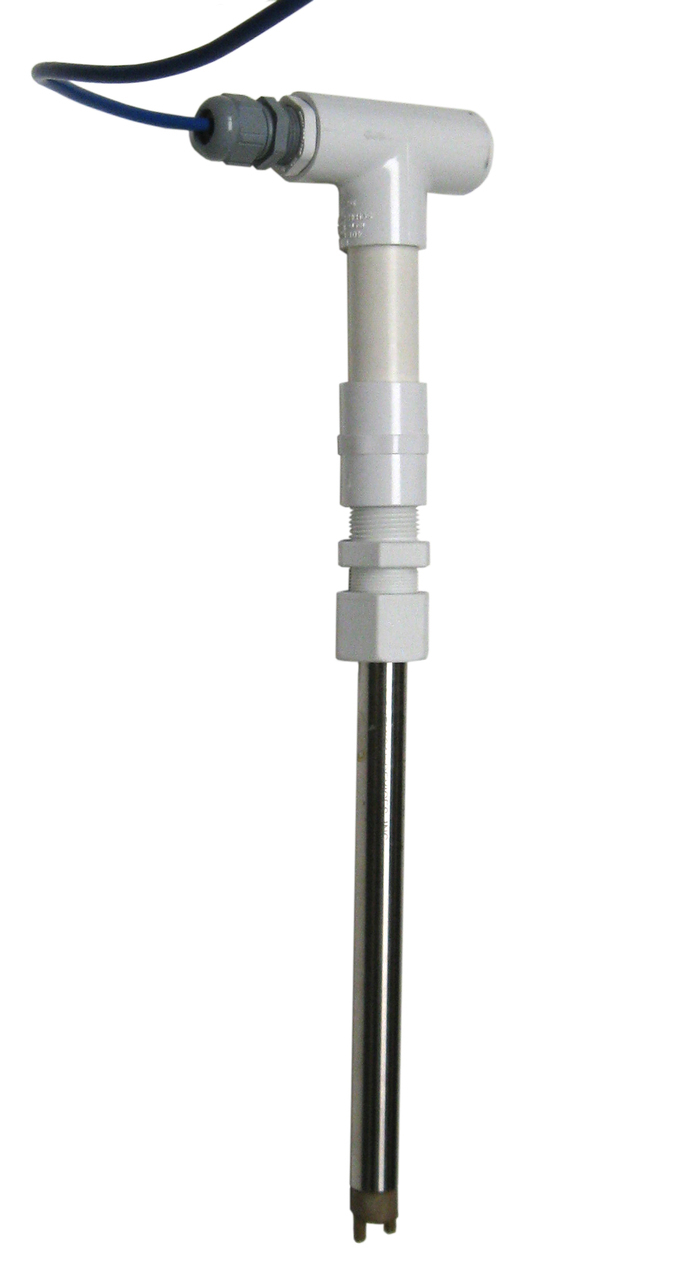

S80 Chloride Ion Sensor |
Sensor
Type |
silver chloride measurement cell, Double Junction |
Direct Measuring Range |
Molar |
5.6 X 10-5 ~ 1.0 |
ppm(mg/L)
|
2.0~35,500 |
Slope
mV/decade at 25˚C |
54±5 |
pH
Range |
2 ~ 12 |
Temp(˚C)
Range |
0 ~ 80 |
Interfernce |
Bromide, iodide, strong reducing agents |
W etted Materials |
Radel, epoxy, AgS/AgCl, PTFE, 316SS, Viton O-Ring |
Process Connections |
MVS10 : 3/4" MNPT compression fitting MVS17 : 1"
MNPT Ball Valve |
|
|
