Bromide (Br-)
|
| |
|
|
|
| Bromide (Br-) |
Model |

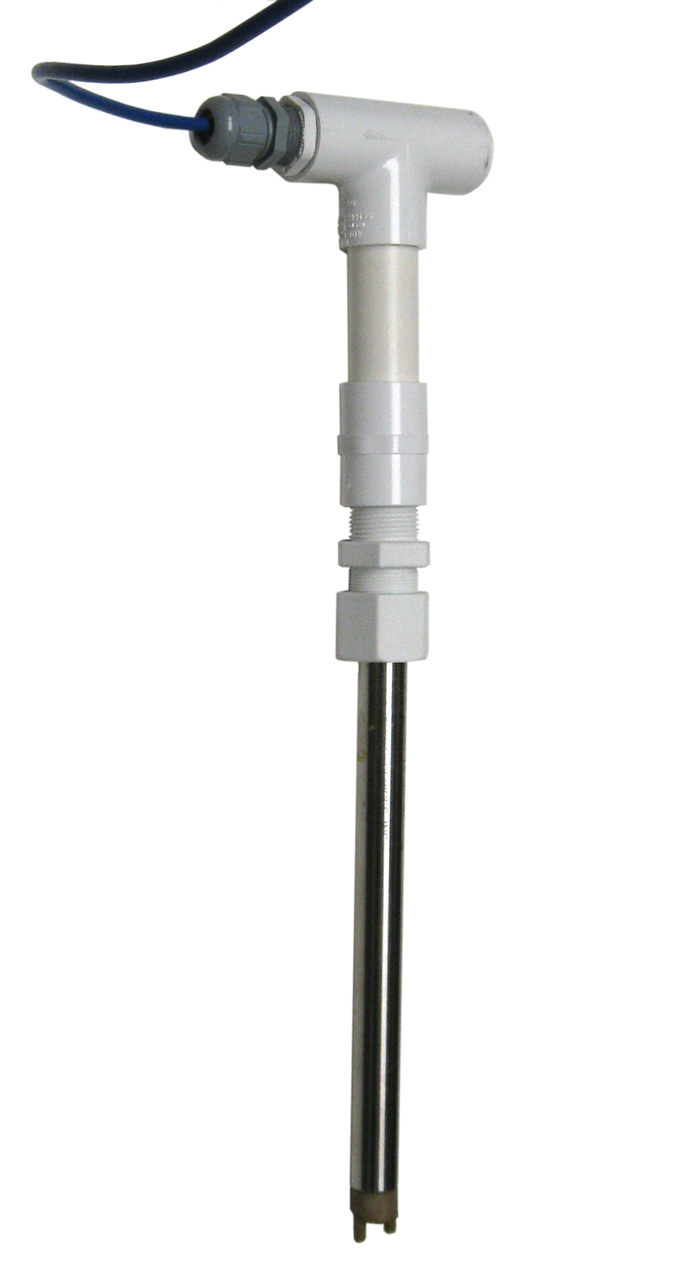

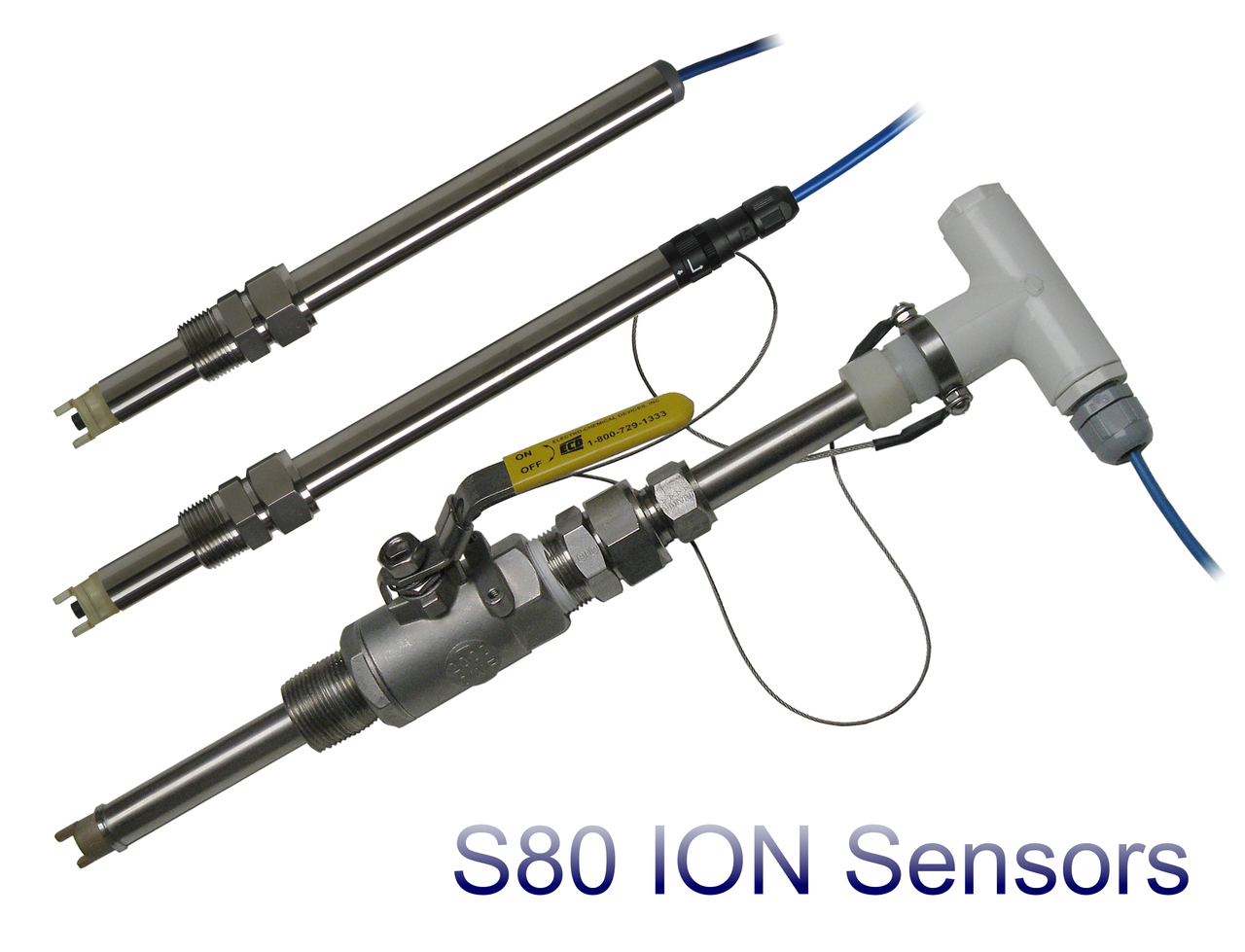

S80 Bromide Ion Sensor |
Sensor
Type |
silver bromide measurement cell, Double Junction |
Direct Measuring Range |
Molar |
2 X 10-6 ~ 1.0 |
ppm(mg/L)
|
0.2 ~ 79,000 |
Slope
mV/decade at 25˚C |
54±5 |
pH
Range |
1 ~ 12 |
Temp(˚C)
Range |
0 ~ 80 |
Interfernce |
chloride, iodide, strong reducing agents |
W etted Materials |
Radel, epoxy, AgS/AgBr, PTFE, 316SS, Viton O-Ring |

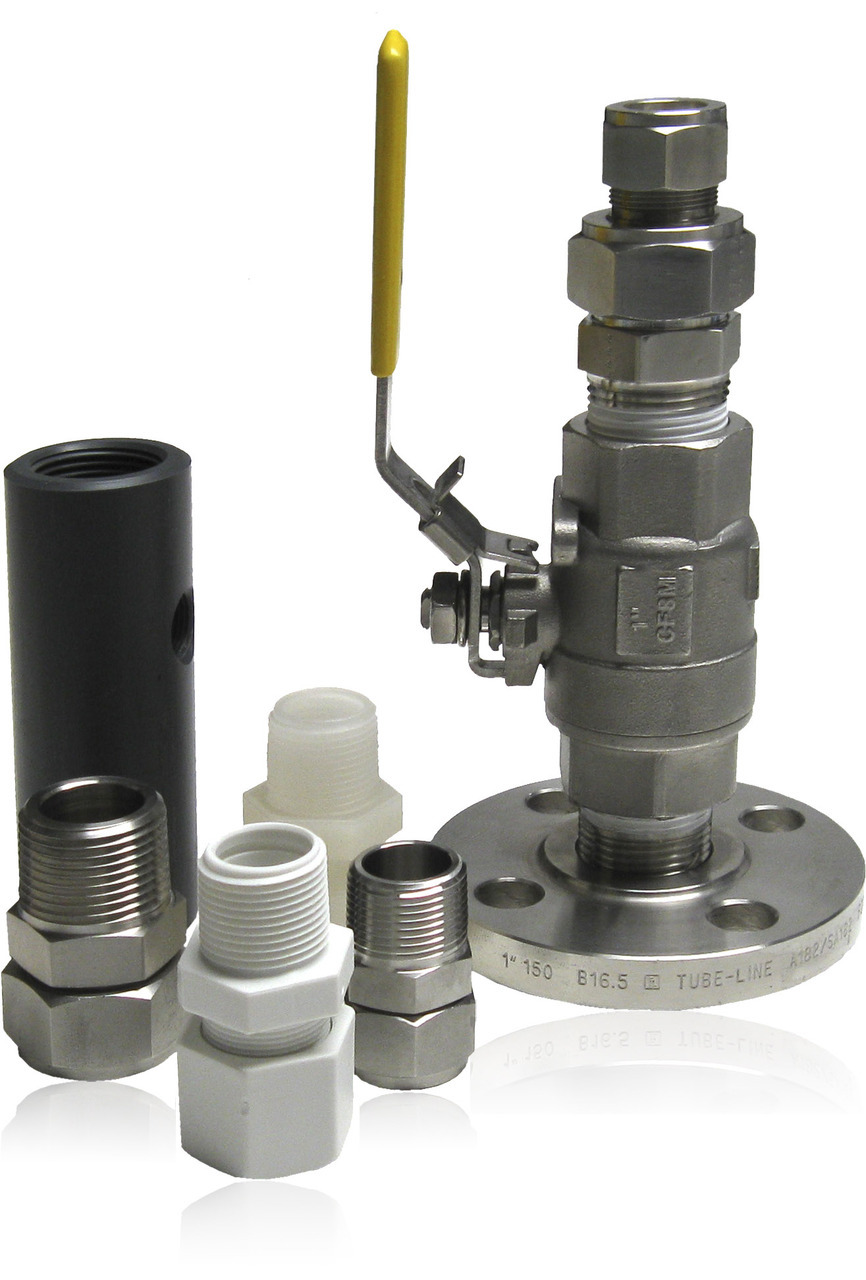

Process Connections |
MVS10 : 3/4" MNPT compression fitting MVS17 : 1"
MNPT Ball Valve |
|
|
